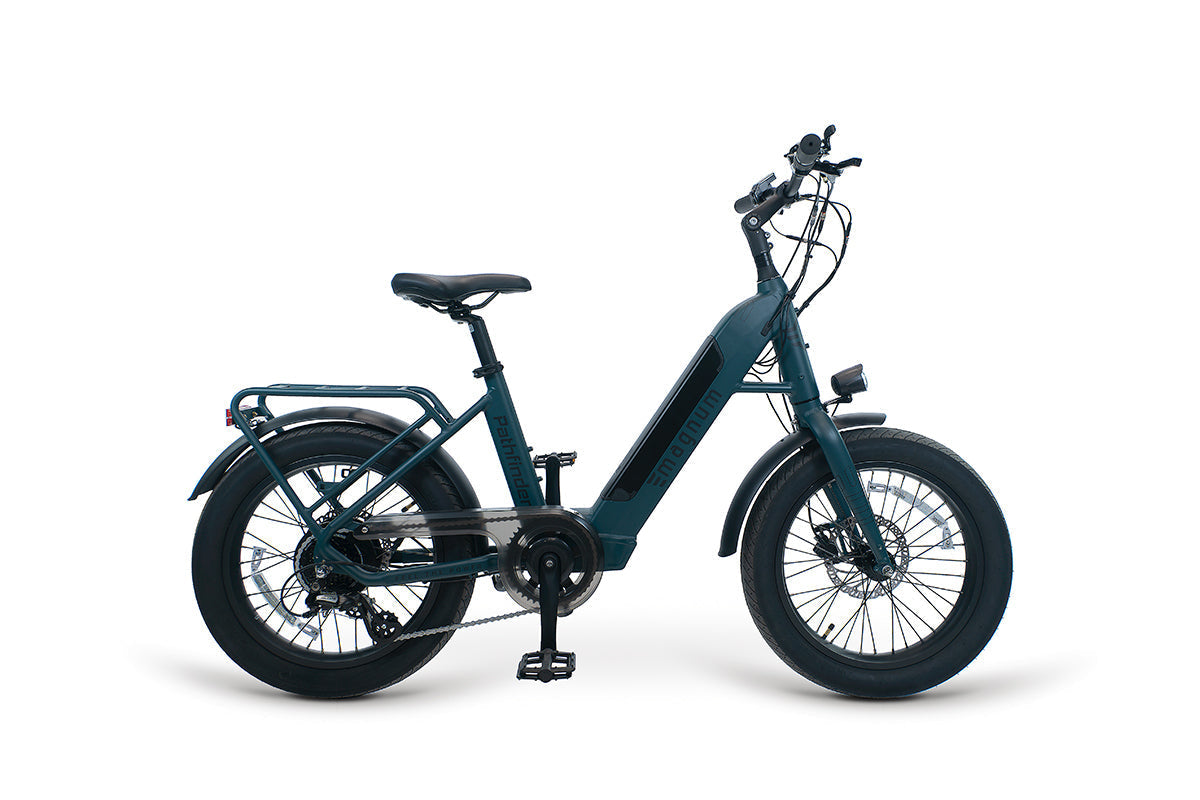

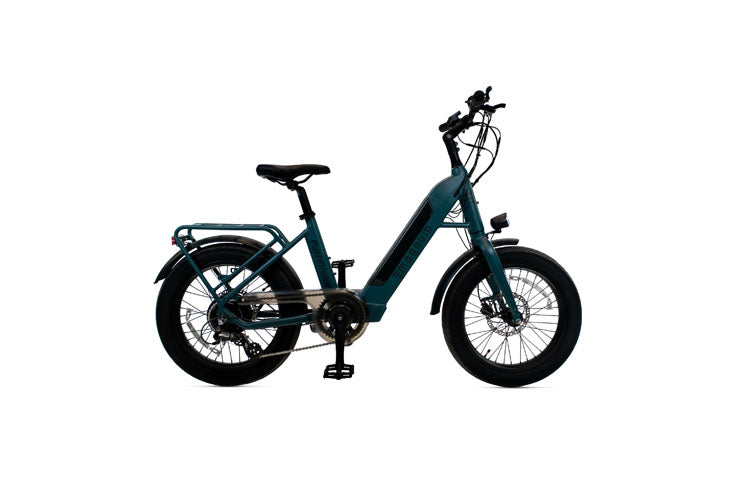

Work hard, play hard. The Magnum Pathfinder T is a versatile e-bike which can be used for commuting, recreation, exercise and more. The unisex step-through frame is well-suited for riders across a broad range of height and physical ability. The new Torque pedal assist gives the rider more control then ever before.
PATHFINDER 500W CALLOUT FEATURES

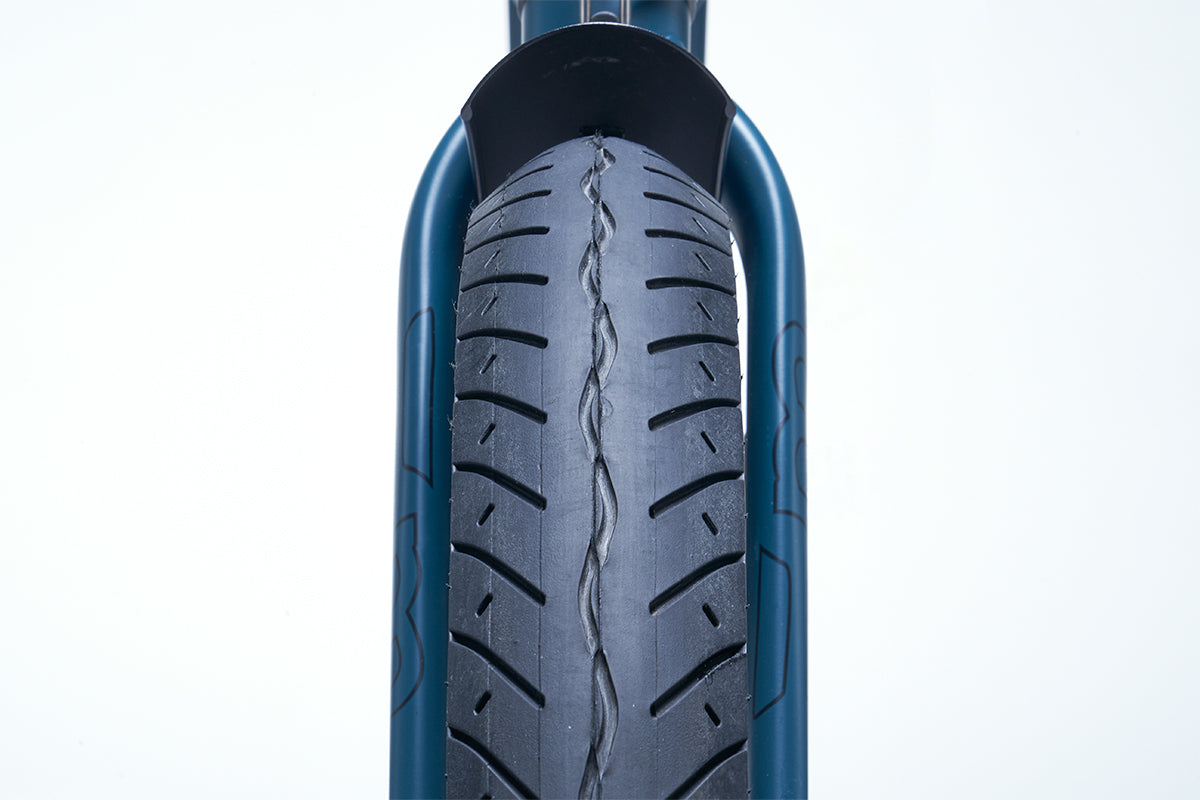

- The 20″ x 3” fat tire wheels are designed for performance and comfortability when riding over most terrain.

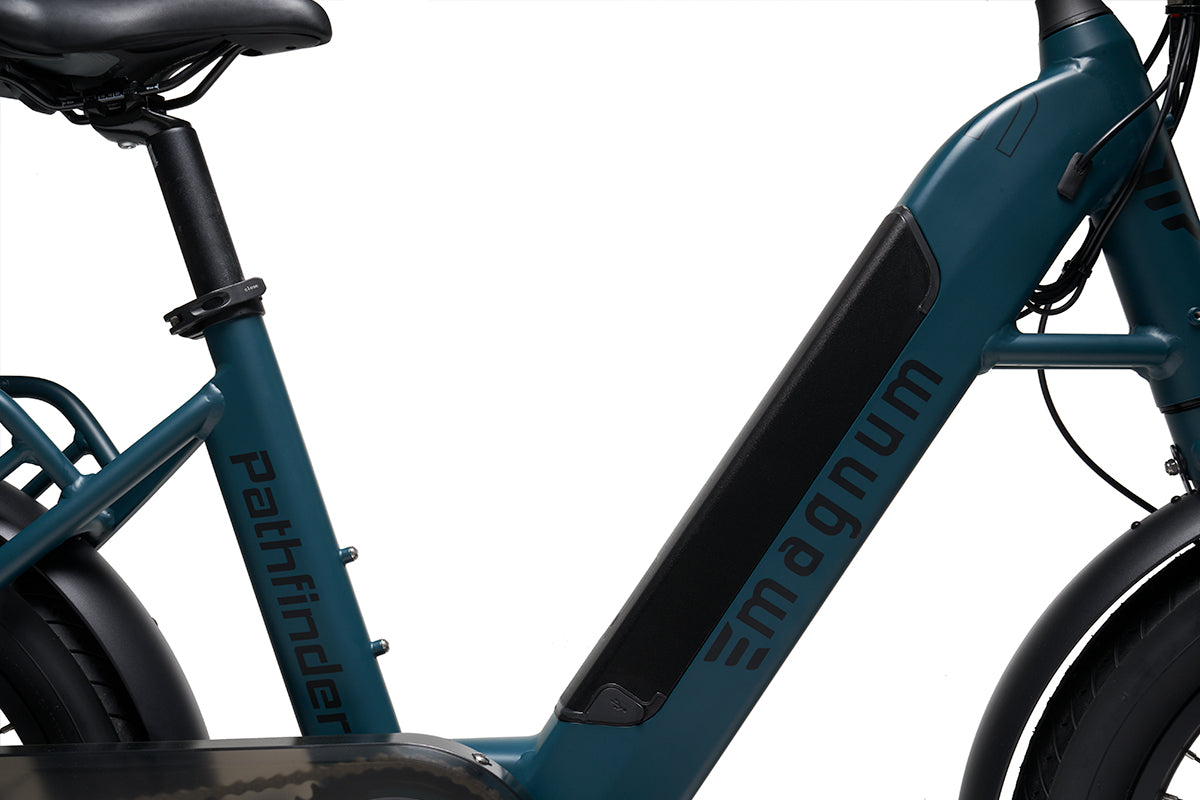

- The fully-integrated 48v / 13ah / 624wh battery blends in smoothly with the frame for a sleek look, and provides for a 48 – 80 Kilometre range depending on a number of variables like rider weight, cargo weight, terrain, wind direction, and pedal assist level.

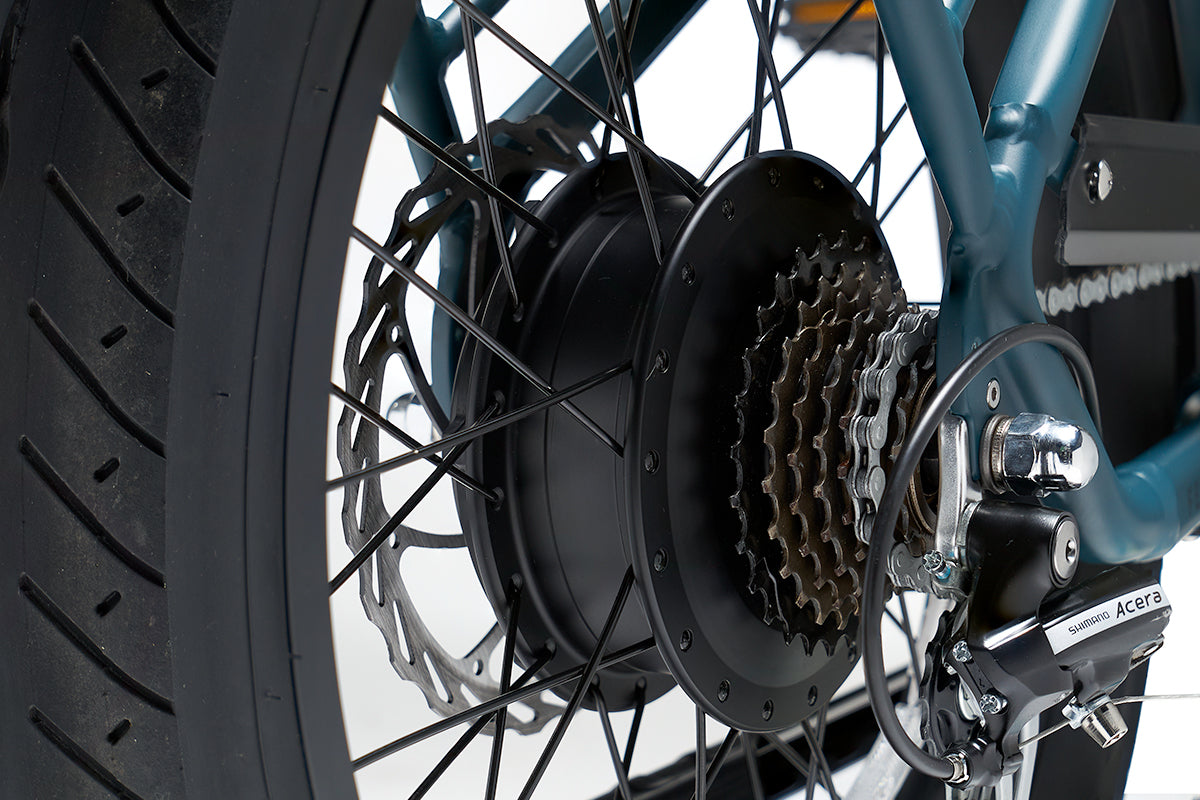

- The rear geared hub motor packs 48v / 500w of power with 5 modes of pedal assist, for speeds of up to 40 KM/HR.
-

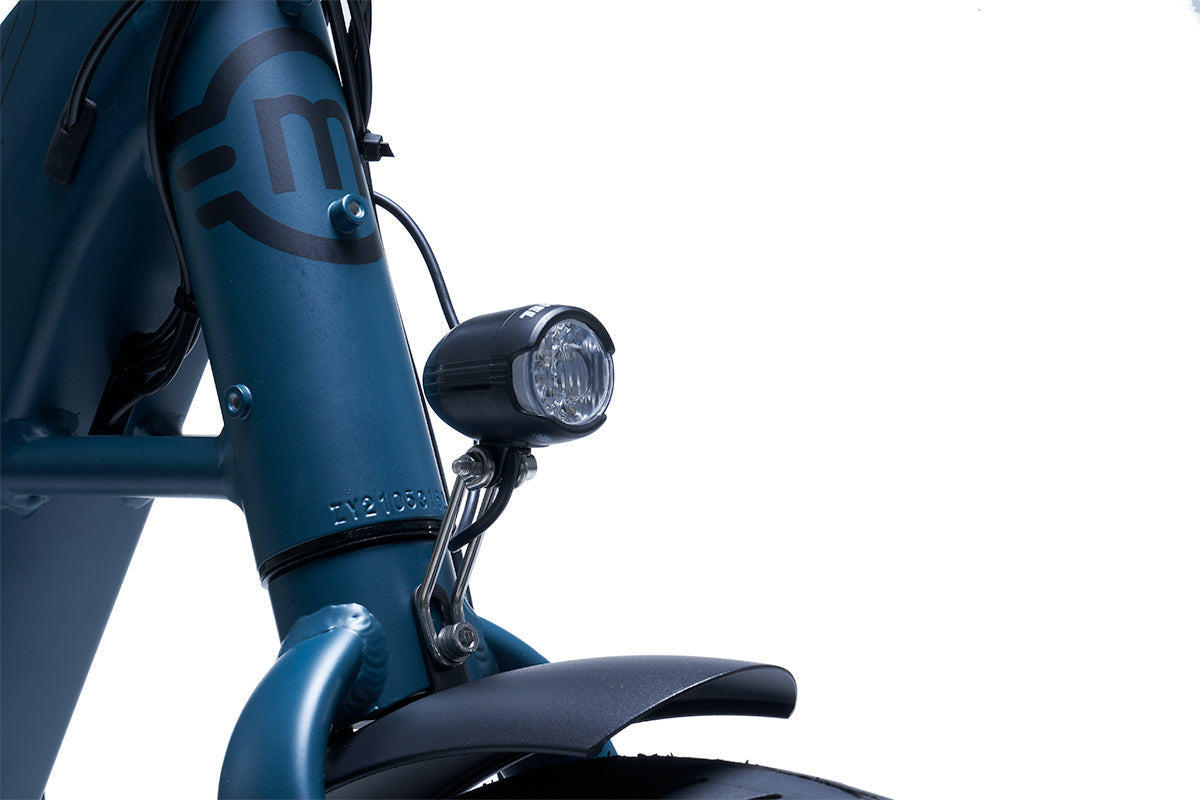

Integrated powerful front headlight and rear light.
-
Tektro Hydraulic disc brakes to bring you to a smooth, controlled stop.
ADDITIONAL FEATURES
- Quick release seat post
- 7 speed shimano gear shifter

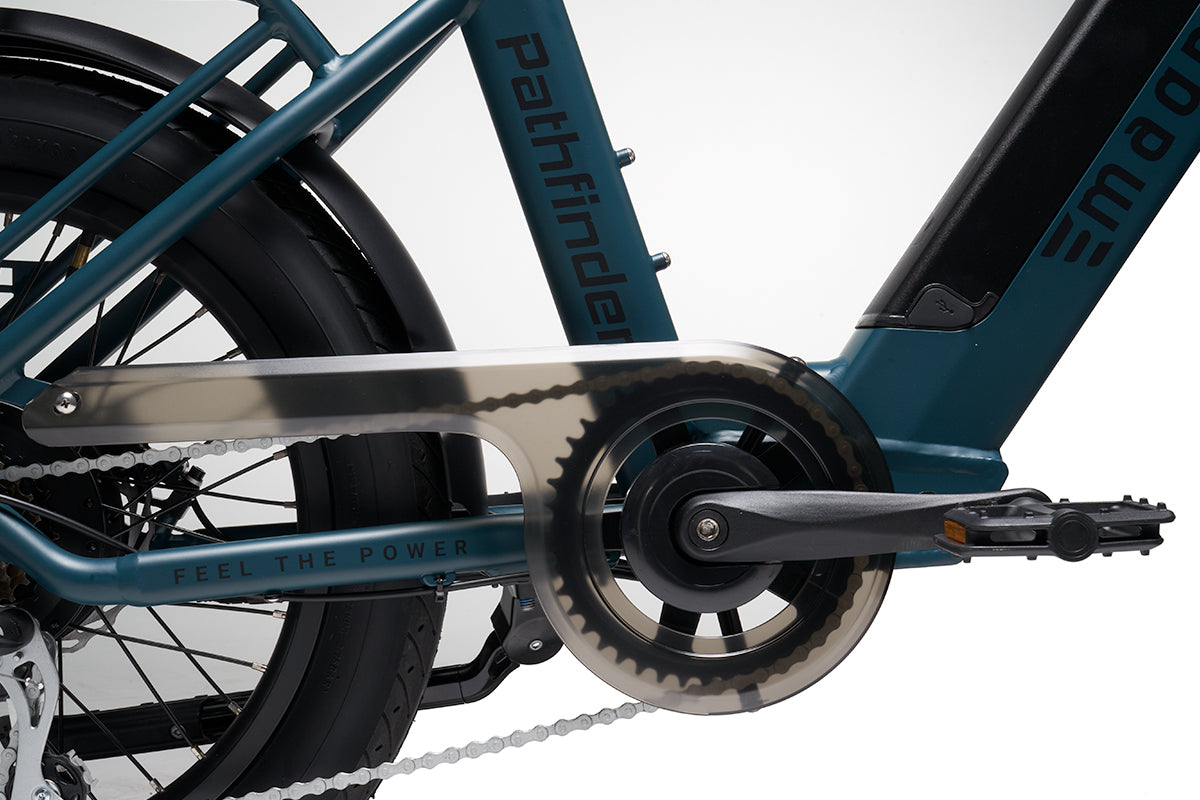

- Chain guard
- Front fender to protect you from dirt and debris
- 3” wide fat tires to keep your ride comfortable

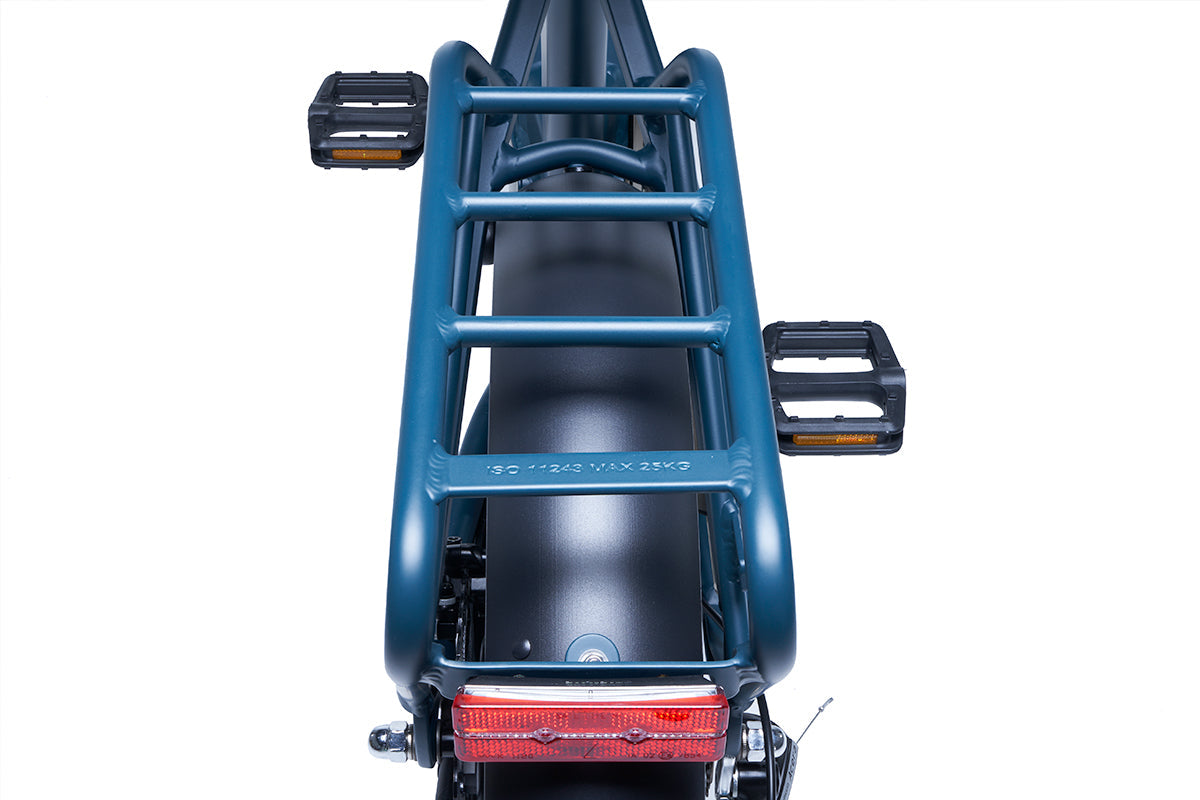

- Welded rear rack
ELECTRONIC DETAILS
-
Motor Type: Rear Geared Hub Motor
-
Motor Output: 48v 500w
-
Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah /624wh
-
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
-
Estimated Charge Time: 6 Hrs
-
Estimated Min And Max Range: 48 To 80 Kilometres (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)
-

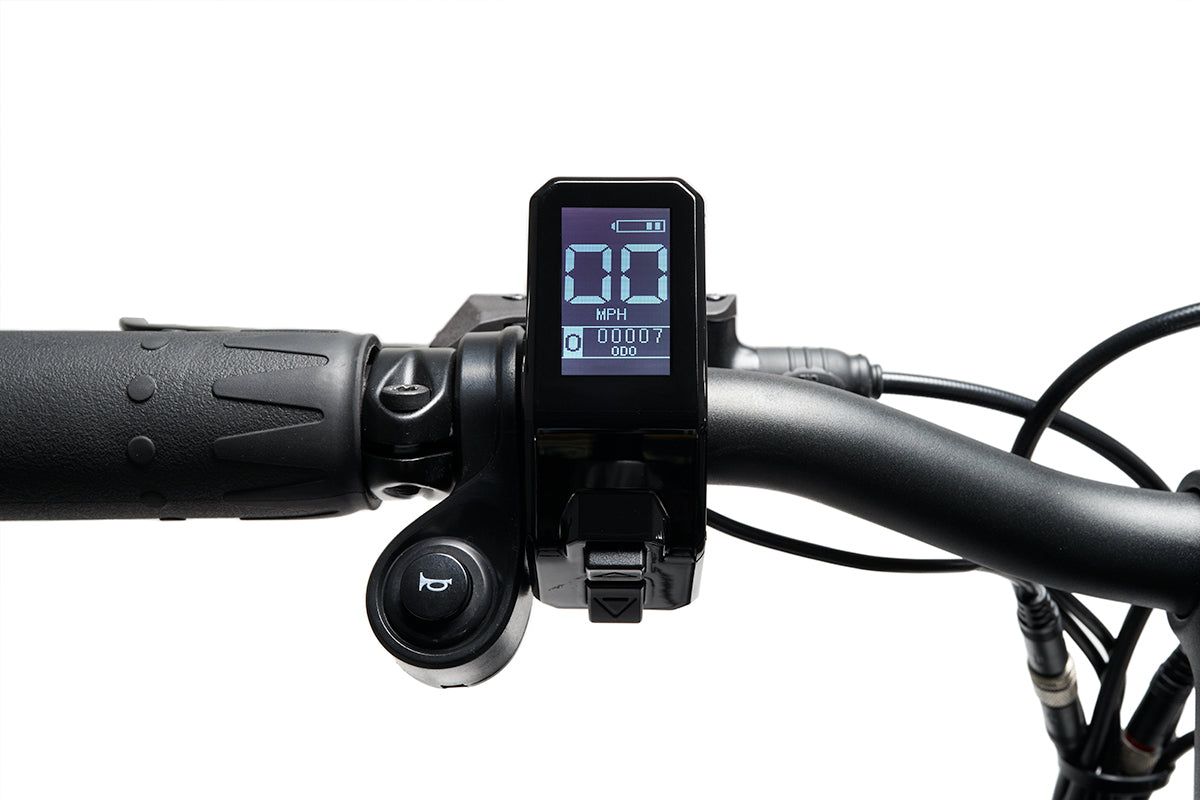

Display Type: Bigstone H102 Display
-
Display Readouts: Speed (kmh), Frontlight on/off, Assist Level 0-5, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage)
-
Drive Modes: Pedal Assist, Twist Throttle
-
Max Speed: 40KM/HR
-
Lights: Integrated Front and Rear Light controlled by the display (power on/off)
BICYCLE DETAILS
-
Total Weight: 50lbs
-
Battery Weight: 8lbs
-
Frame Type: Low Step
-
Fork Details: Fixed Alloy
-
Gearing Details: Shimano Altus 7 Speed
-
Shifter Details: Shimano Altus
-
Stem: Adjustable Alloy
-
Brake Details: Tektro Hydraulic disc brakes
-
Saddle: VELO saddle
-
Seatpost: Rigid
-
Rack / Fenders: Rear rack, front and rear fenders
-
Tires: Innova 20″ fat tire
-
Wheel Size: 20″ x 3″
*Some assembly required. Comes 80% assembled.
Product Dimensions:
66(L) x 24(W) x 41(H) inches
Package Dimensions:
55(L) x 10(W) x 33(H) inches - 88 lbs
