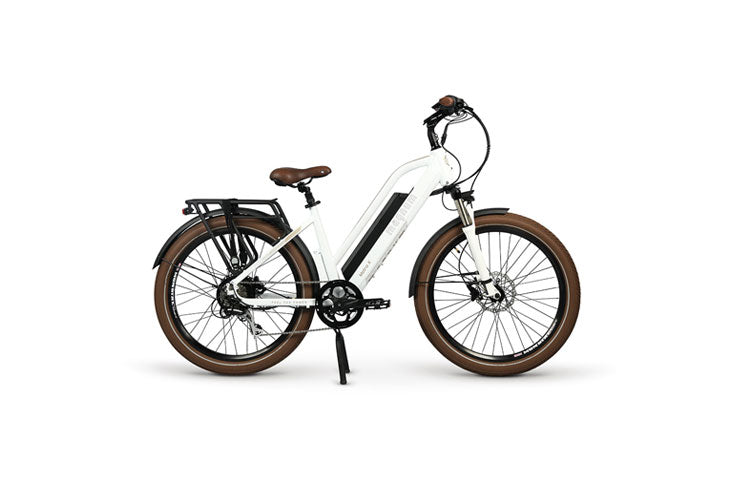

The Magnum Metro X is a touring/all-road electric bike built for road riding, commuting, recreational riding, and gravel trails. Step-thru frame for easy mounting and dismounting. The 48V 500W power system offers both pedal assist and throttle mode. One year limited warranty.
Model: Magnum Metro X
Body Position: Upright
Electric Bike Class: Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty: One Year Limited Warranty
Max Load: 265lbs
ELECTRONIC DETAILS
Motor Type: Bafang Rear Geared Hub Motor
Motor Output: 48v 500w

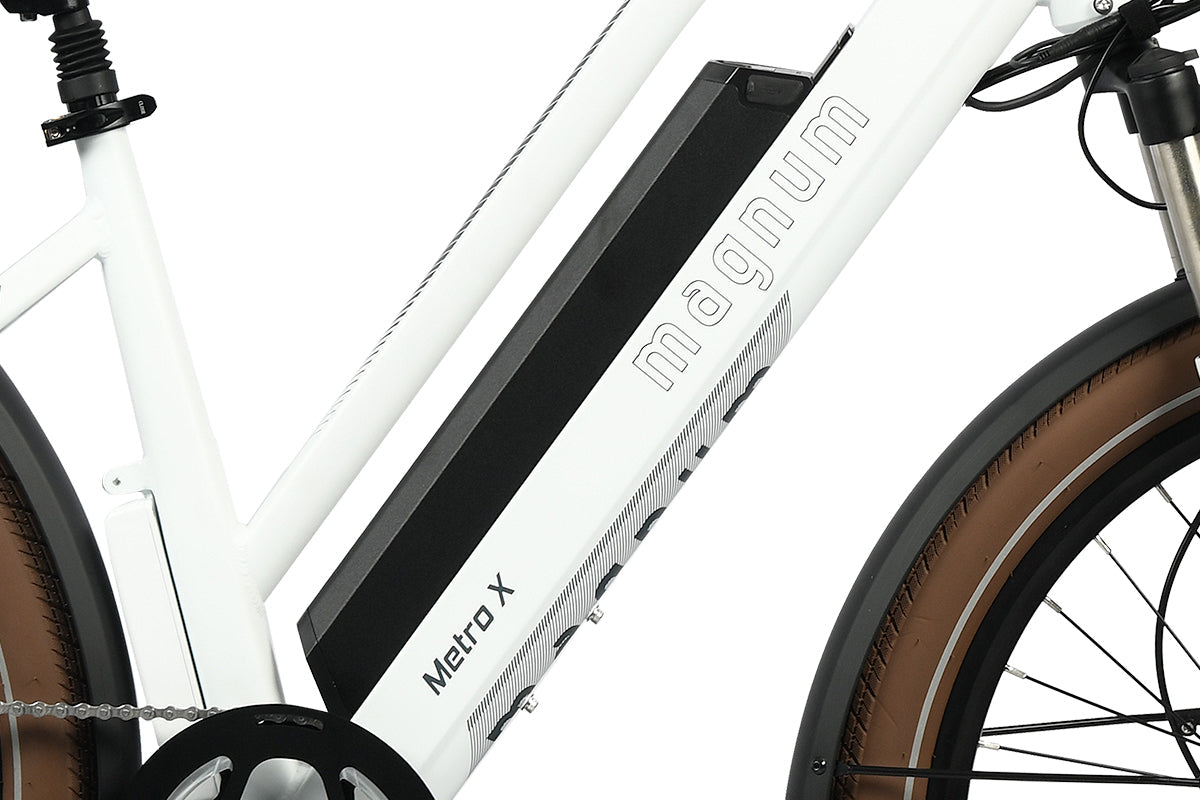

Battery Voltage / Amp Hours / Watt Hours: 48 Volt / 15 Ah / 720 Wh
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time: 7.5 Hours (For a full charge)
Estimated Min And Max Range: 56 To 80 Kilometres (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)
Display Type: Magnum LCD
Display Records: Power Output Indicator, Battery Level, Speed, Assist Level, Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes: Cadence Sensing Pedal Assist, Paddle Throttle, Walk Mode
Top Speed: 45KM/HR With Pedal Assist, 20mph Throttle Only

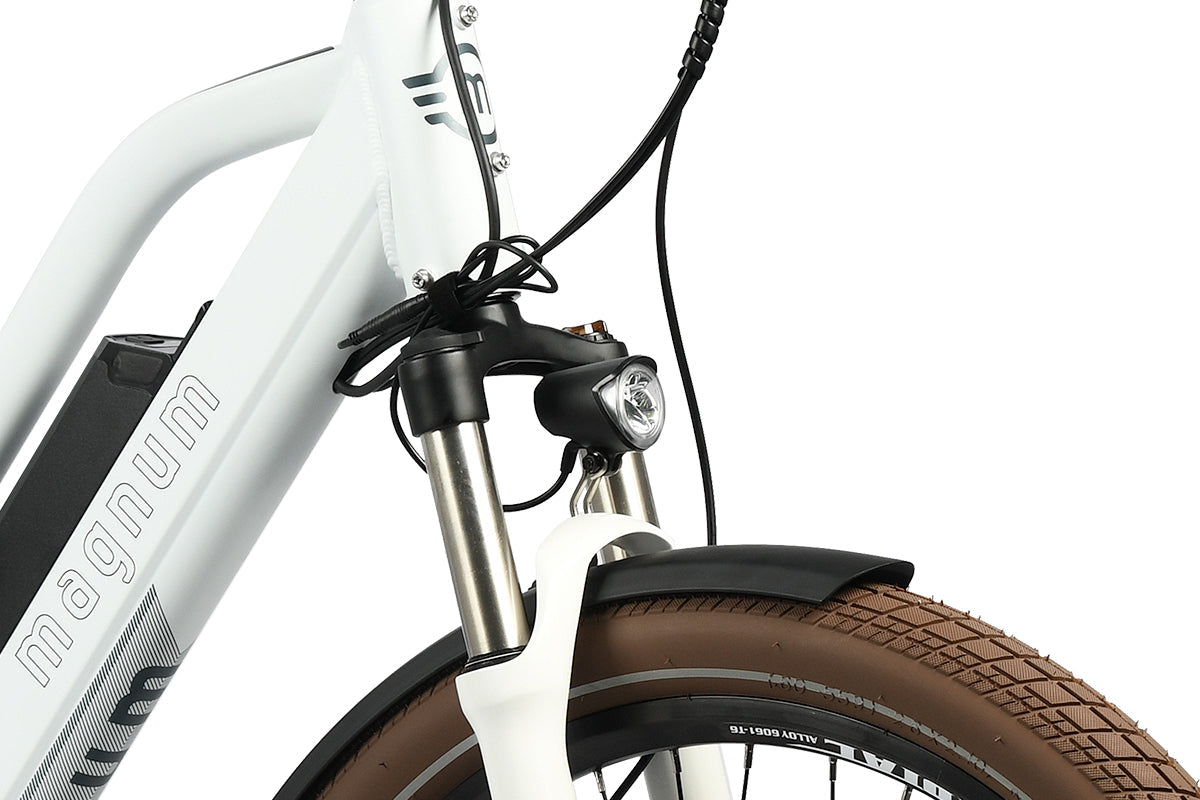

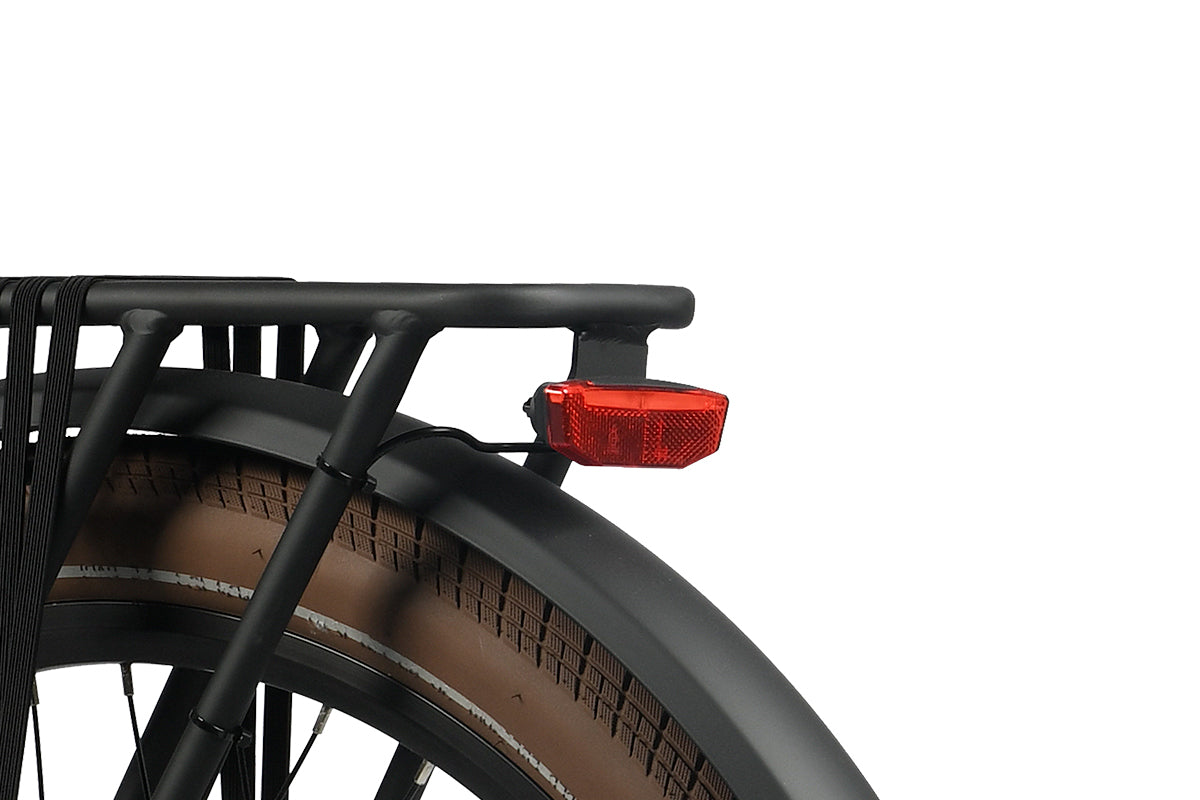

Lights: Integrated front and rear light controlled from the display / Brake Light activated when braking
BICYCLE DETAILS
Frame Type: Step-Through (For easy mounting and dismounting)
Frame Material: 6061 Aluminum Alloy

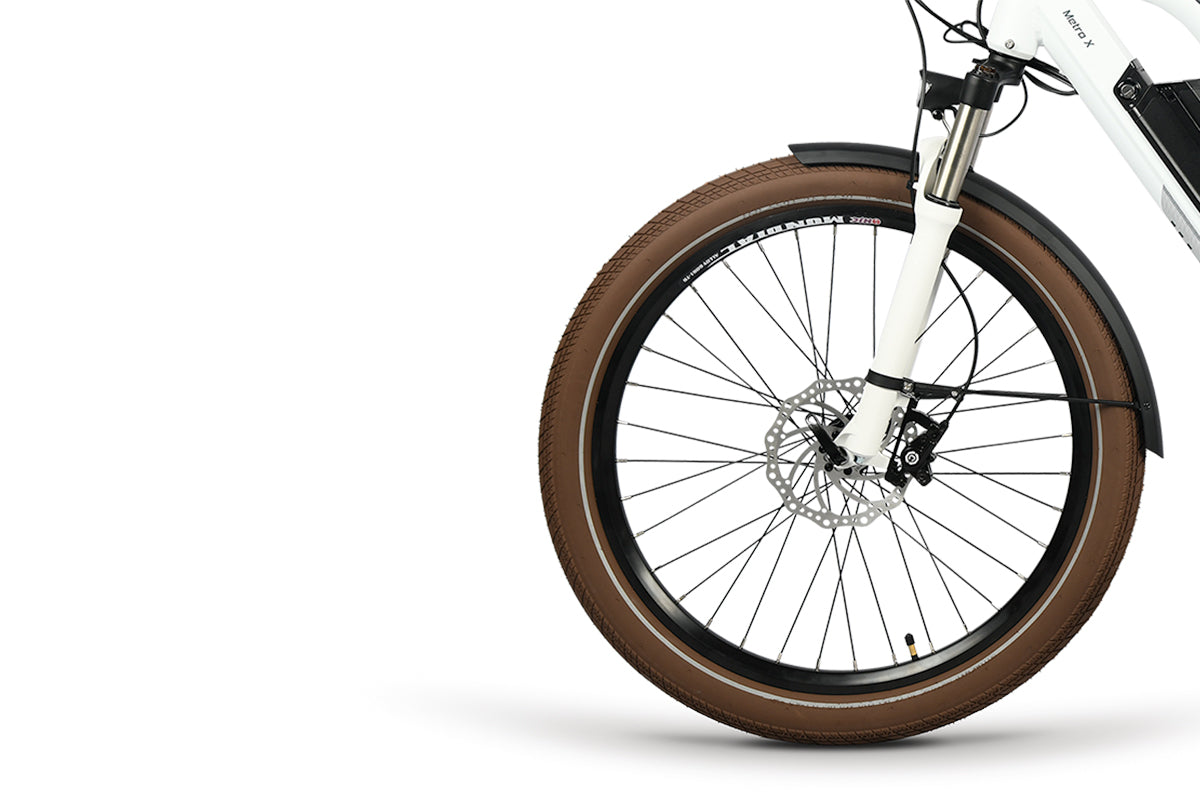

Fork Details: Suspension fork with lockout & preload adjustment

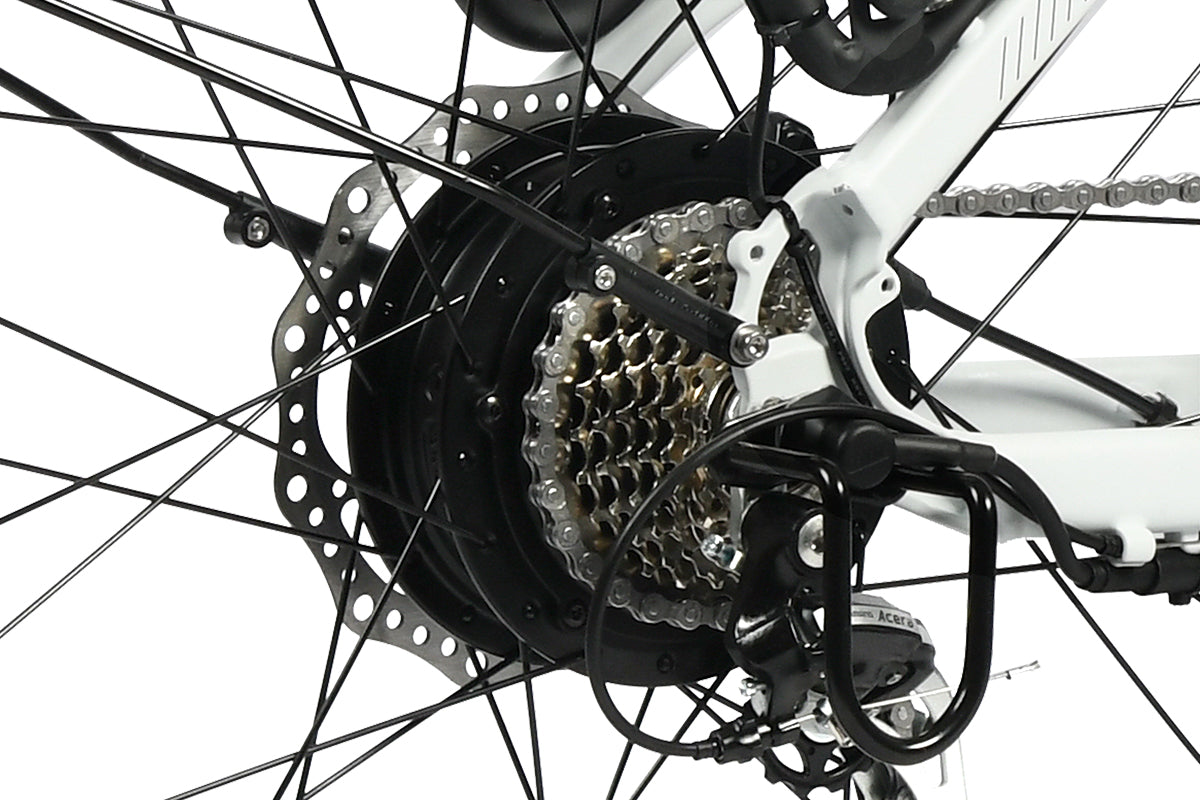

Gearing Details: Shimano Acera Derailleur 7 Speed
Shifter Details: Shimano 7 speed
Pedals: Wellgo Aluminum Platform
Stem: Promax Tool-free adjustable

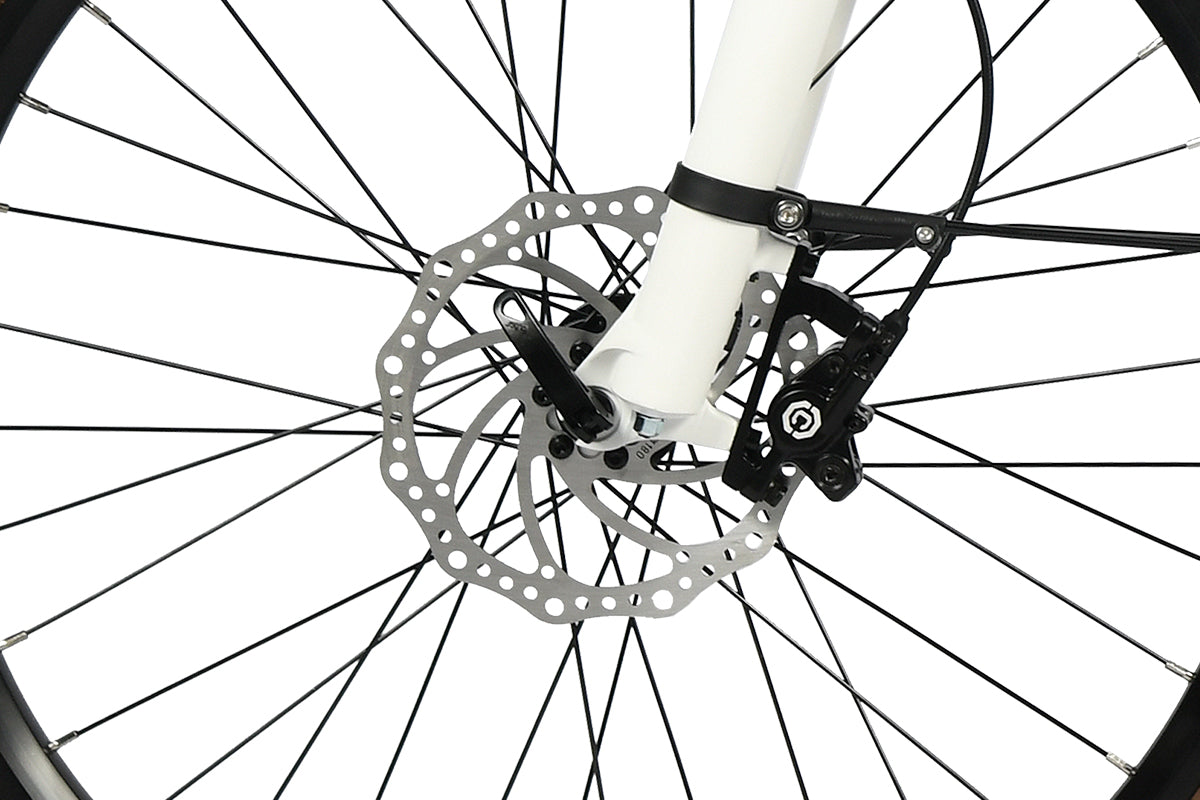

Brake Details: Clarks Hydraulic disc brakes
Grips: Brown Faux Leather With Stitching
Saddle: Selle Royal Polygel
Seatpost / Seatpost Dimensions: Suspension
Fenders: Front And Rear
Rims: Aluminum Alloy
Tires: 26in x 2.4in brown tire INNOVA
Wheel Size: 26″
Kickstand: Double leg kickstand
Rack: Rear rack included
Product Dimensions:
72(L) x 28(W) x 45(H) inches
Package Dimensions:
59(L) x 11(W) x 35(H) inches - 84 lbs
*Comes 80% assembled. Some assembly is required.
| METRO X |
MEASUREMENTS |
| A. MAX SEAT HEIGHT |
29.1in |
| B. MIN SEAT HEIGHT |
21.4in |
| C. STANDOVER HEIGHT |
21.8in |
| D. HANDLEBAR HEIGHT |
41.7in-45.6in |
| E. WHEELBASE |
43.5in |
| F. TOTAL LENGTH |
70.4in |
| REACH |
21.2in |
| SEAT TUBE LENGTH |
17.3in |
