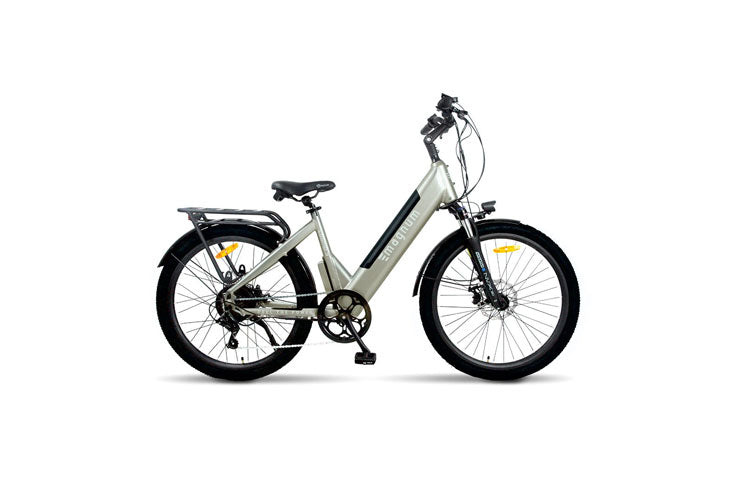

The Magnum Cosmo S is a budget friendly option in our popular Cosmo series. The Cosmo S has a light low step frame with a fully integrated battery. The power system is 48 Volts running on a 500 Watt motor and a 15Ah battery for the range and power you need to run errands or go on a relaxing bike ride.
Model: Magnum Cosmo S
Body Position: Upright
Warranty: One Year Limited Warranty
Max Load: 275lbs
ELECTRONIC DETAILS

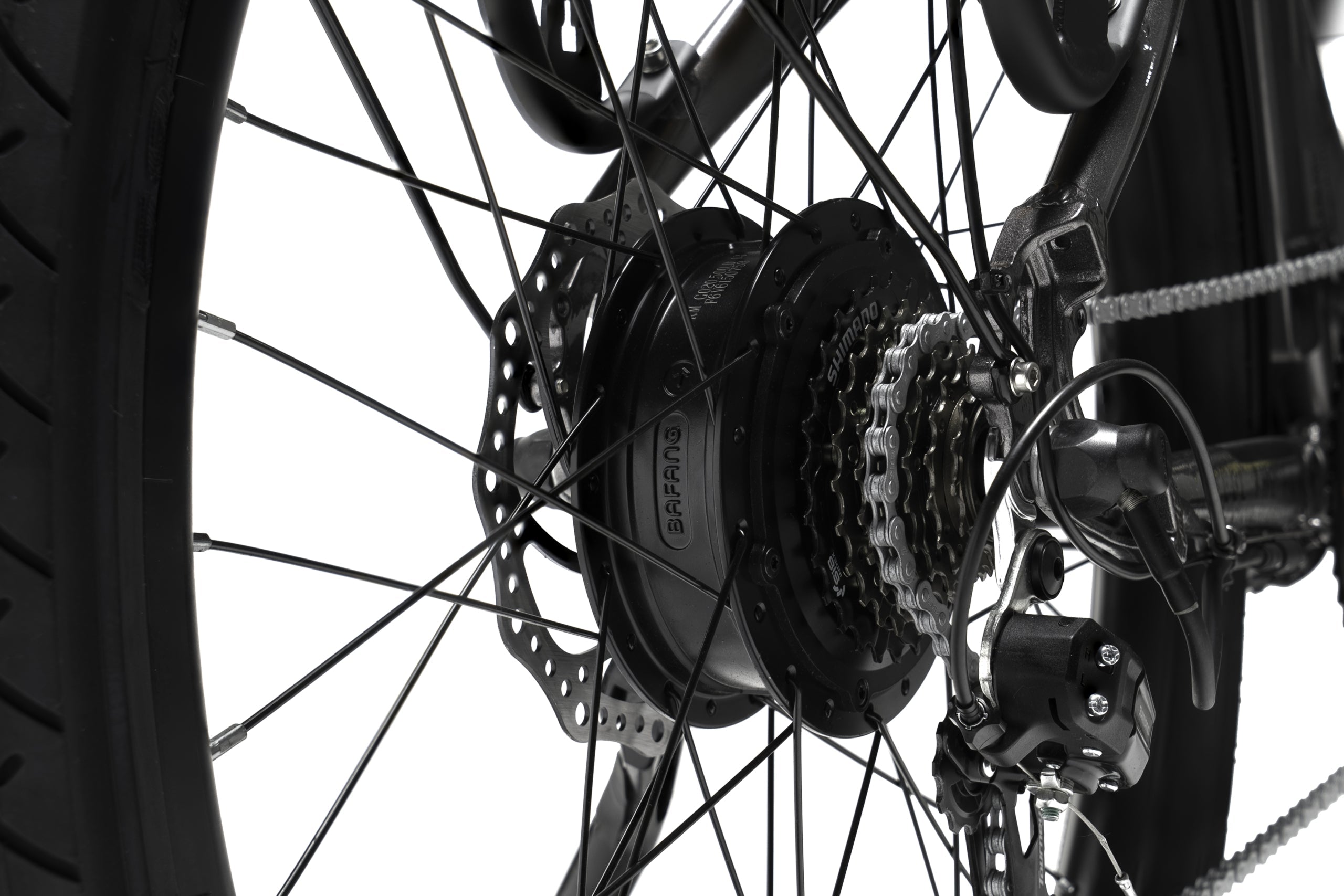

Motor Type: Rear Geared Hub Motor
Motor Output: 48 Volts 500 Watts
Battery Voltage / Amp Hours / Watt Hours: 48v / 15ah / 720wh
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time: 7.5 Hrs
Estimated Min And Max Range: 48 – 80 Kilometres (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)

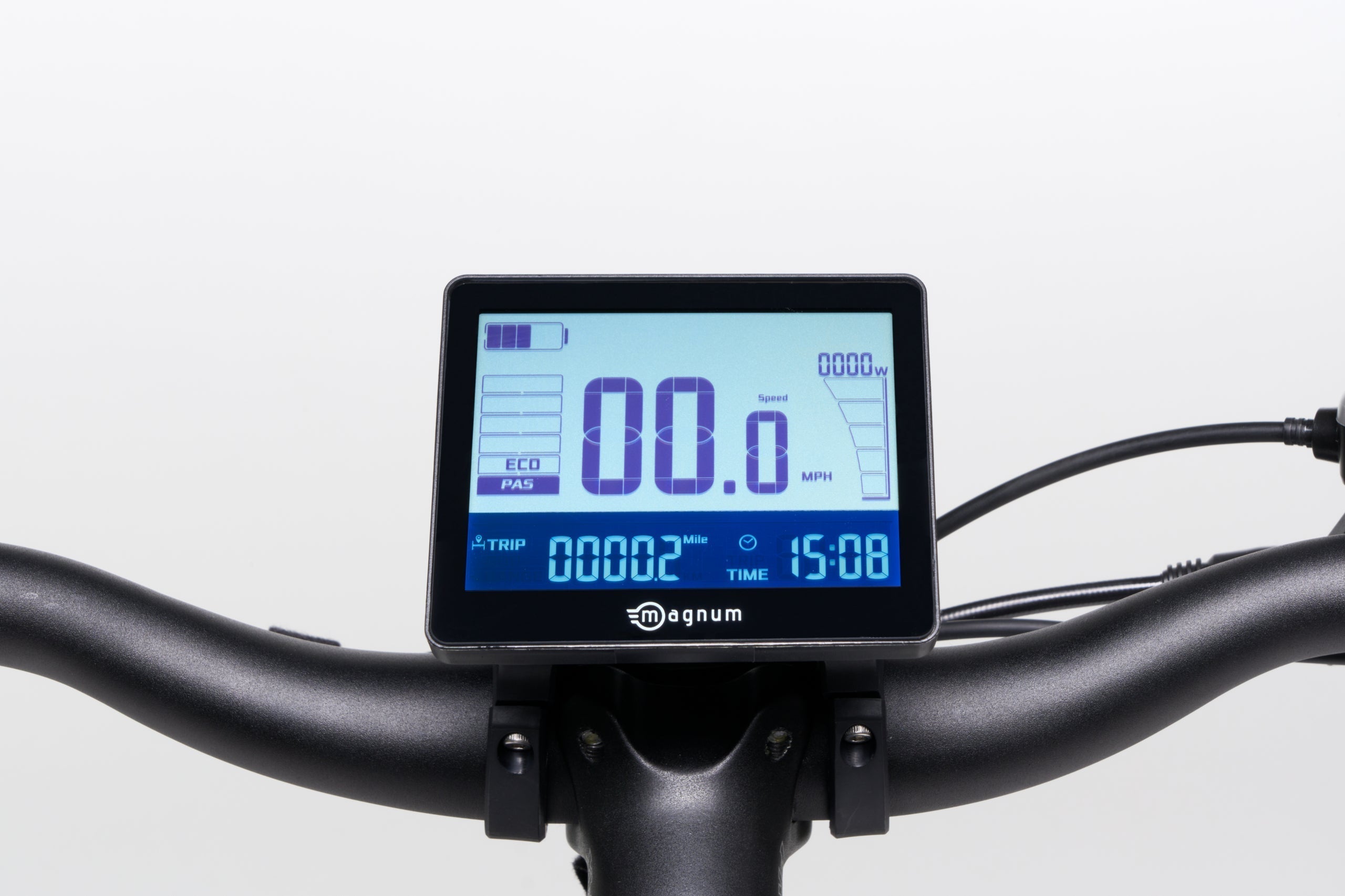

Display Type: LCD Display
Display Readouts: Battery Level (4 Bars), Speed Kilometers Only, Assist Level (0-3), Odometer, Trip Distance
Drive Modes: Pedal Assist, Twist Throttle
Top Speed: 40KM/HR

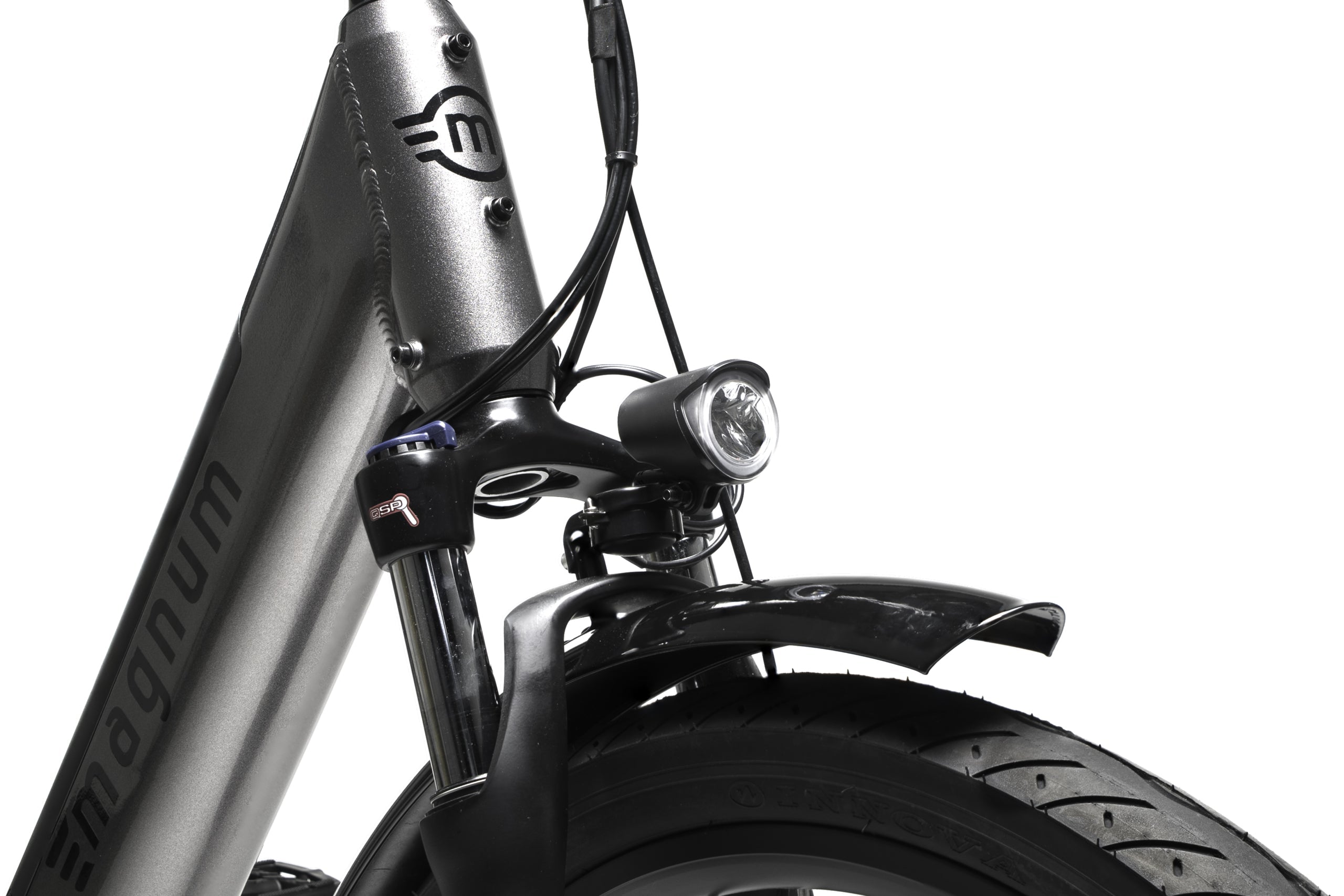

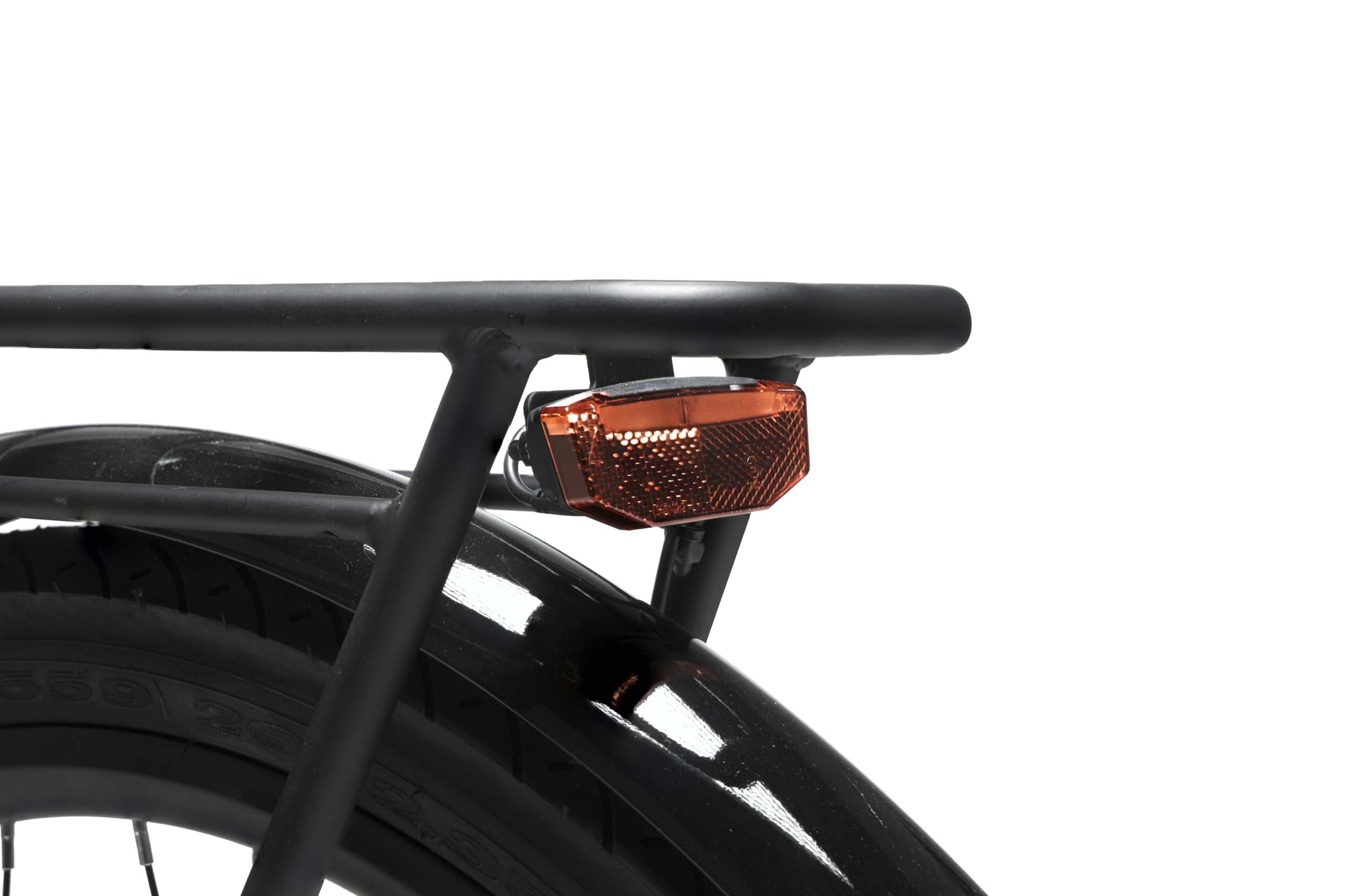

Lights: Integrated Front and Rear Light controlled by the display (power on/off) / Rear brake light activated when braking.
BICYCLE DETAILS
Frame Type: Low Step

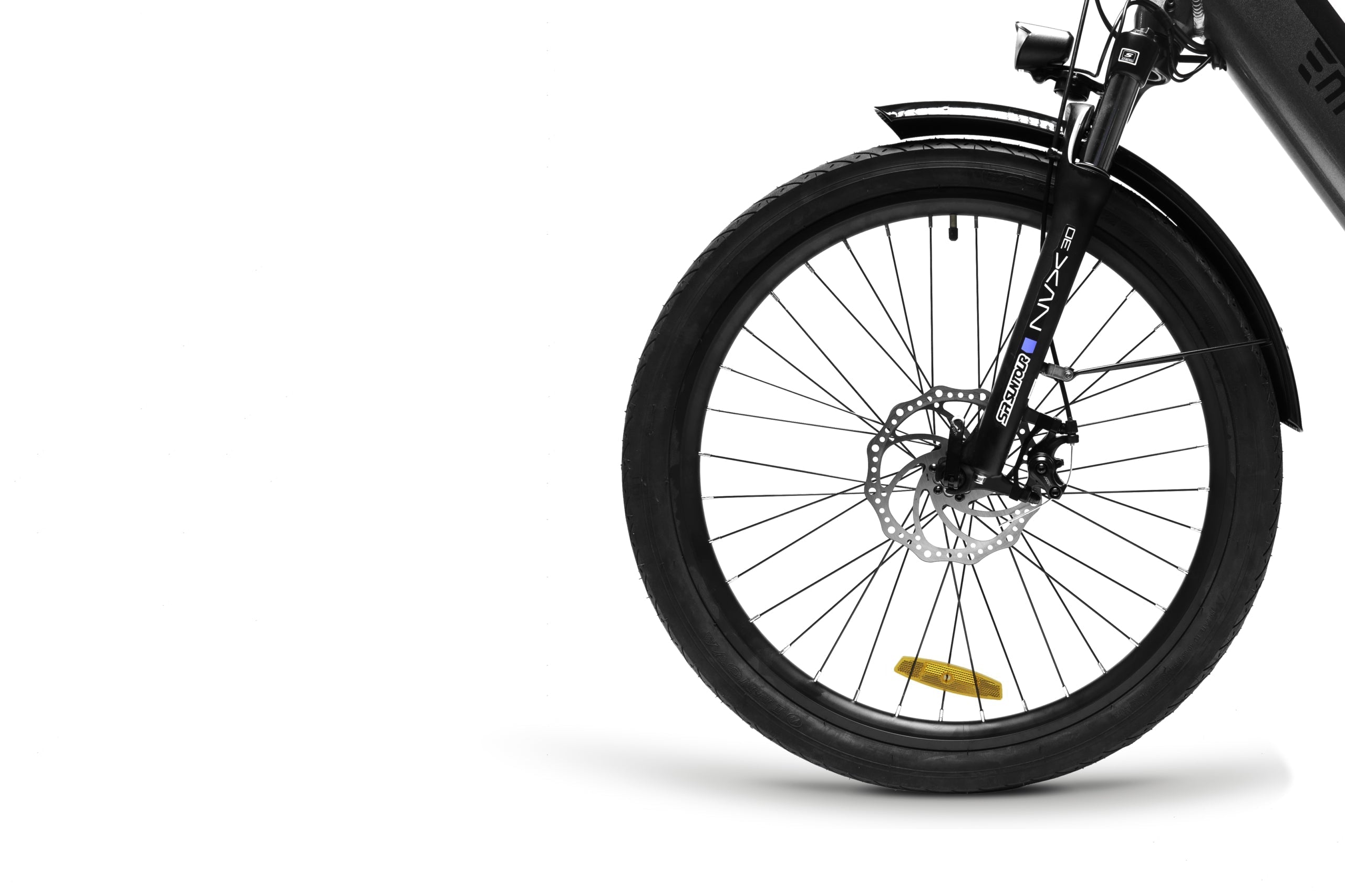

Fork Details: SR Suntour NVX Suspension Fork with lockout and preload adjustment
Gearing Details: Shimano Tourney Derailleur 7 Speed
Shifter Details: Shimano 7 Speed
Cranks: Lunfeng 52T*170mm
Pedals: Feimin City Style
Stem: 25.4mm Adjustable
Brake Details: Artek Mechanical Disc Brakes
Saddle: QF Saddle Black
Grips: Black Faux leather with stitching
Seatpost: 27.2*300mm
Fenders: Aluminum Alloy front and rear fenders
Rack: Rear carrier rack
Rims: 26″
Tires: Innova 26″ x 2.35″ Black
Product Dimensions:
71(L) x 26(W) x 45(H) inches
Package Dimensions:
60(L) x 10(W) x 33(H) inches - 73 lbs
*Some assembly required. Comes 80% assembled.
| COSMO S |
MEASUREMENTS |
| A. MAX SEAT HEIGHT |
22in |
| B. MIN SEAT HEIGHT |
22in |
| C. STANDOVER HEIGHT |
18.5in |
| D. HANDLEBAR HEIGHT |
41.5in-43.5in |
| E. WHEELBASE |
44.4in |
| F. TOTAL LENGTH |
69.2in |
| REACH |
20.4in |
| SEAT TUBE LENGTH |
18.1in |
