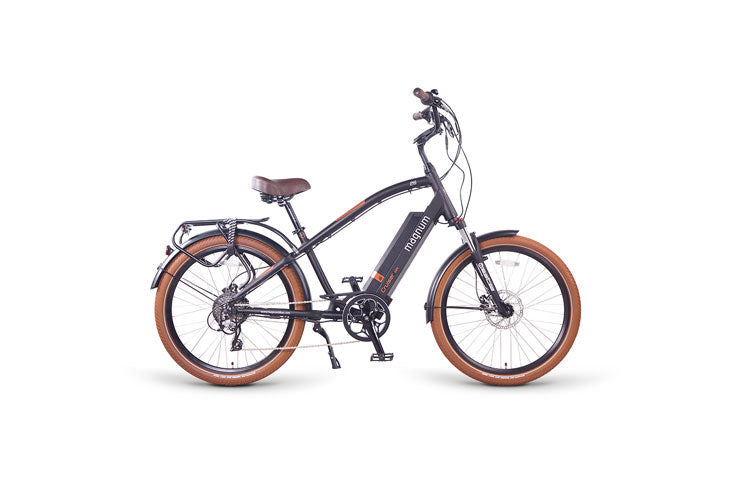

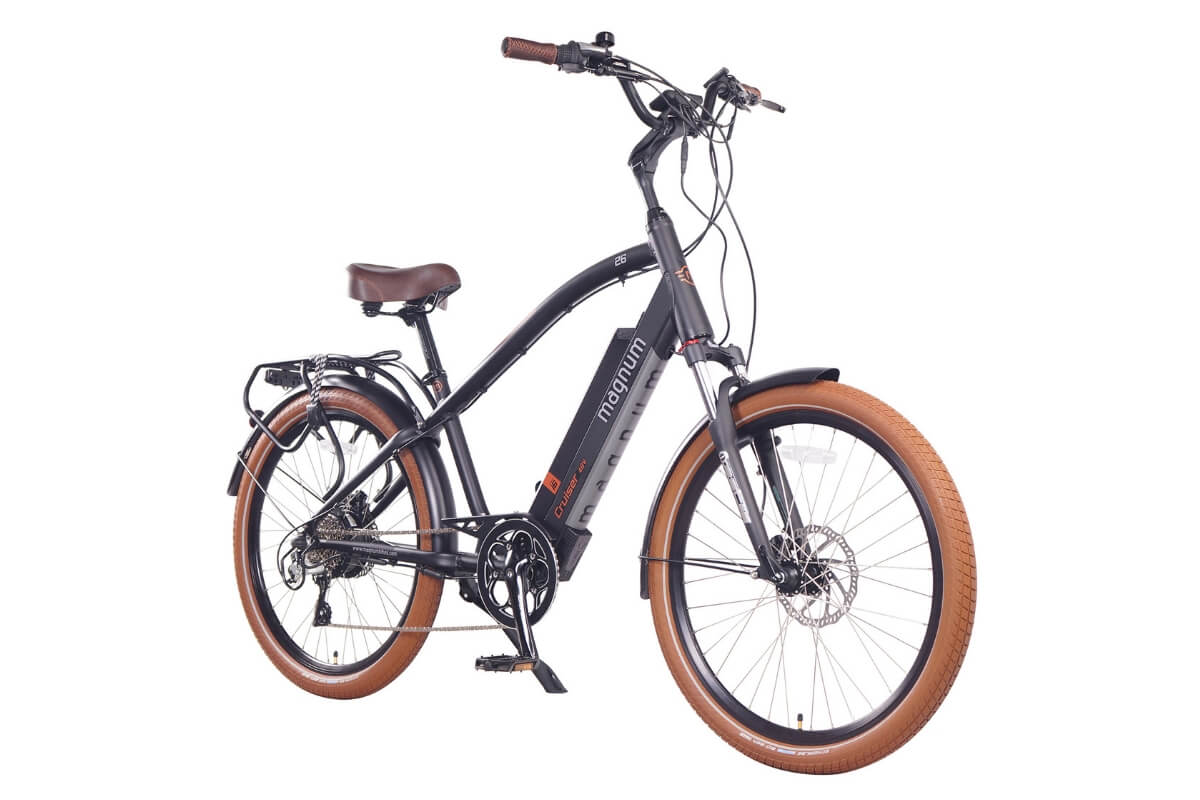

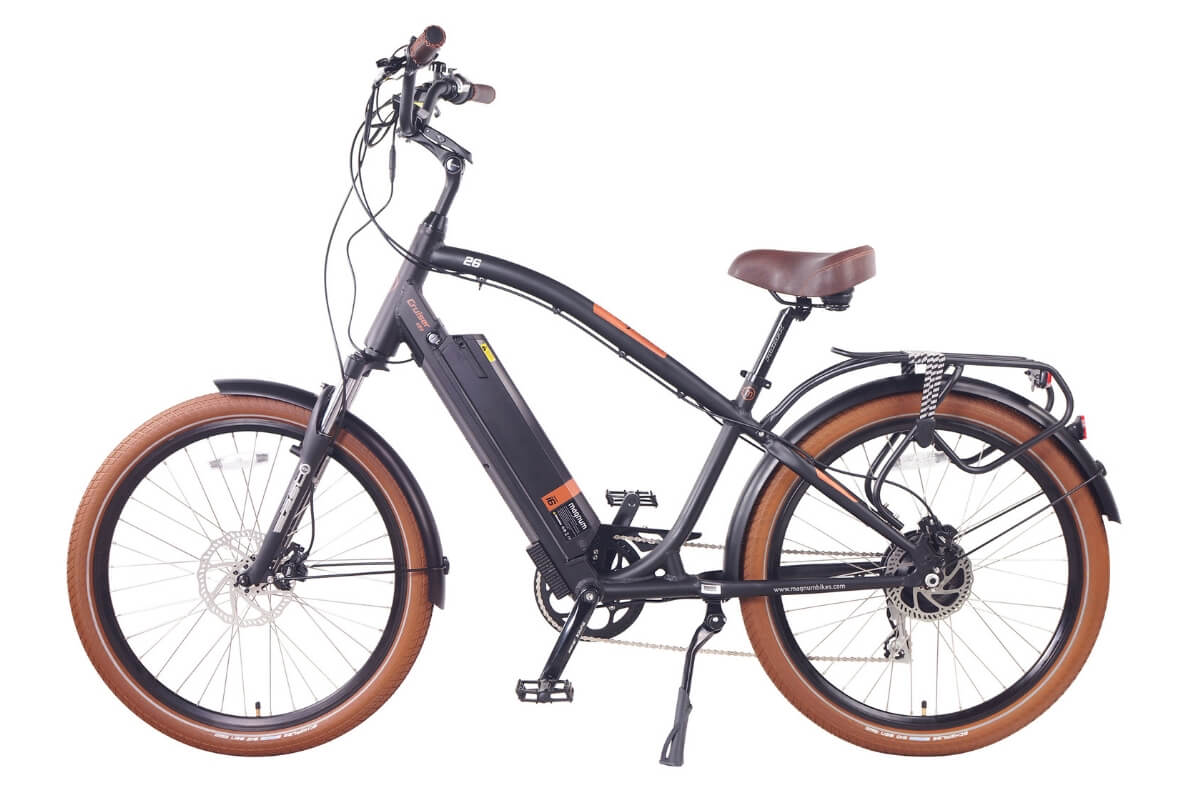

A beautifully designed beach cruiser style electric bike well suited to urban riding or commuting. Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers both pedal assist and throttle mode. One year limited warranty.
Model:
Magnum Cruiser
Body Position:
Upright, Upright Relaxed
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
One Year Limited Warranty
Max Load:
265lbs
ELECTRONIC DETAILS
Motor Type:
Das-kit R4 Rear Geared Hub Motor
Motor Output:
48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
40 To 72 Kilometres (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)

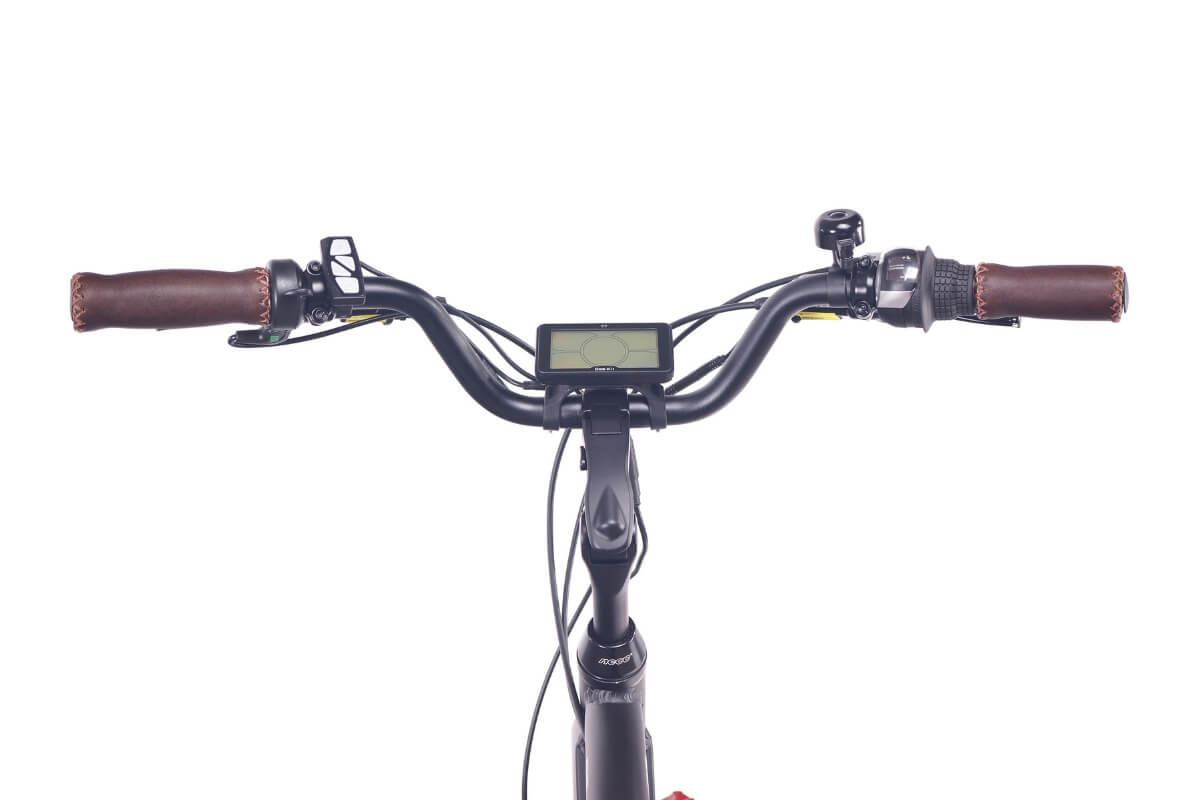

Display Type:
Das-kit C7, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
40KM/HR With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light
BICYCLE DETAILS
Total Weight:
59lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy
Fork Details:
Rst Neon-tnl, Adjustable Spring Suspension With Lockout
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano, Acera M360 Derailleur, 8 Speed
Shifter Details:
Shimano Grip Revoshift 8 Speed
Cranks:
Prowheel 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
Pedals:
Wellgo Aluminum Platform, B087
Stem:
Promax, Mq-579, Tool-free Adjustable, 100mm Length
Brake Details:
Tektro Hydraulic Disc Brakes With Motor Inhibitors
Grips:
Selle Royal Brown
Saddle:
Selle Royal Cruiser With Gel And Dual Spring Suspension
Seatpost / Seatpost Dimensions:
Promax, Sp-252 / 30.4 X 300mm
Fenders:
Front And Rear
Rims:
Aluminum Alloy, Double Walled, 36 Hole
Tires:
Schwalbe Big Ben, Reflective Sidewall Stripe, Kevlar Lined, Schrader Valve
Wheel Size:
26in X 2.15in, 26in (66.04cm)
Product Dimensions:
78(L) x 27(W) x 44(H) inches
Package Dimensions:
62(L) x 10(W) x 33(H) inches - 70 lbs
| Max Seat Height *Measured from bottom pedal stroke. |
31in |
| Min Seat Height *Measured from bottom pedal stroke. |
26in |
| Seat Tube |
16.5in |
| Standover Height |
26.75in |
| Handlebar Height |
49in |
| Handlebar Width |
26.5in |
| Total Length |
76in |
| Wheelbase |
49in |
